End-to-End Container Tracking on Land and Sea: A Hybrid Maritime Monitoring Approach

End-to-end container tracking across land and sea is best achieved using a hybrid monitoring approach that combines GPS asset trackers and Bluetooth Low Energy (BLE) sensors. By using BLE beacons inside containers during the sea phase and GPS-cellular trackers during the land phase, logistics operators can maintain continuous visibility of location and temperature—even for reefer containers—across vessels, ports, and inland transport.

Why End-to-End Container Tracking Is Still a Hard Problem

Despite advances in logistics technology, true container-level visibility remains fragmented.

Most operators face three persistent challenges:

1. Signal loss at sea – GPS and cellular networks are unreliable inside ship holds
2. Reefer monitoring gaps – Temperature data is often logged locally, not transmitted
3. Handover blind spots – Visibility drops during vessel-to-land transitions

As a result, operators know where a ship is, but not:

• Which container is at risk
• Whether temperature excursions occurred mid-voyage
• Exactly when and where issues began

This gap is particularly costly for reefer containers, where even short temperature deviations can destroy cargo value.

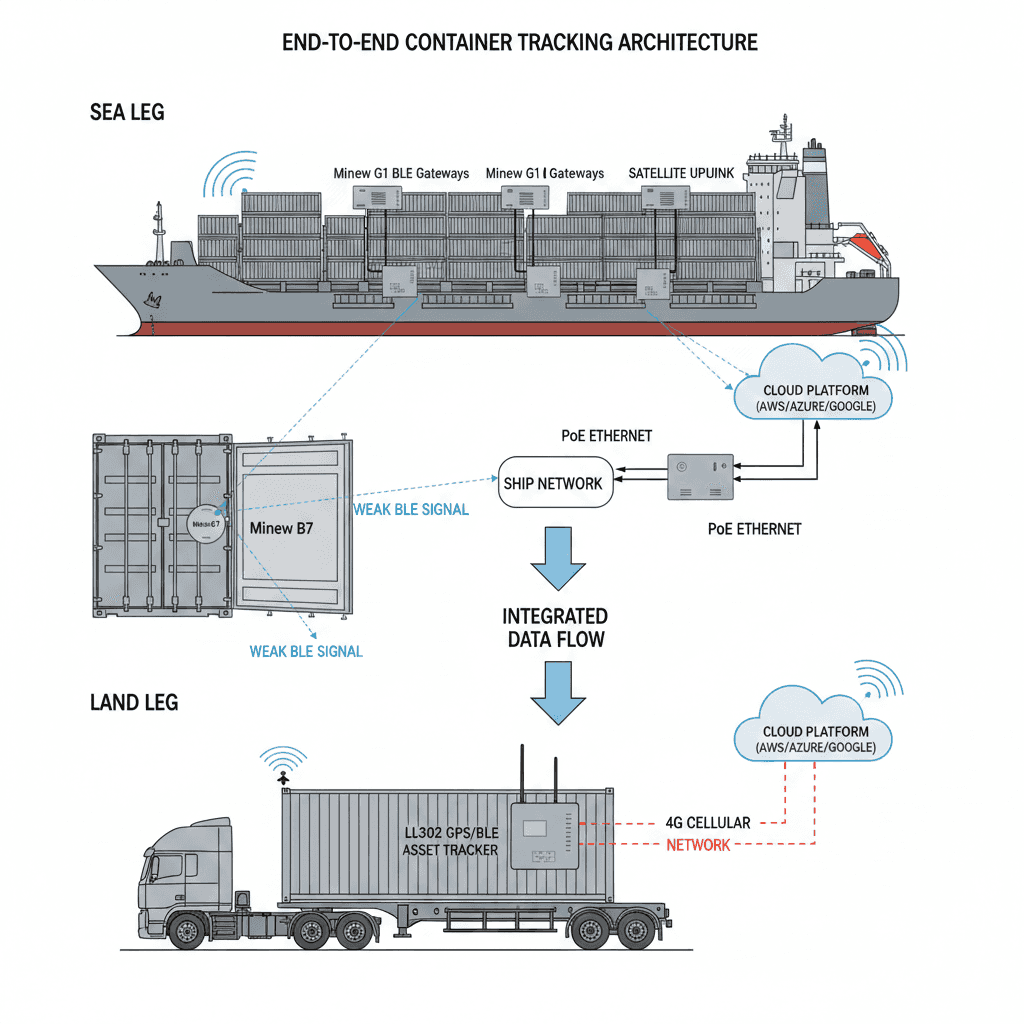

The Hybrid Maritime Monitoring Concept

Use different technologies for different phases of the journey—each where it works best.

Instead of forcing one device to work everywhere, the hybrid approach separates monitoring into:

• Sea Phase (BLE + Gateway + Satellite)
• Land Phase (GPS + Cellular)

The result is continuous, redundant, and practical container intelligence.

Sea Phase Monitoring: BLE Sensors + On-Ship Gateways

Why GPS Alone Fails at Sea

Inside a ship's hold:

• GPS signals cannot penetrate steel containers
• Cellular networks are unavailable
• Satellite trackers inside containers drain batteries rapidly

However, Bluetooth Low Energy (BLE) signals can escape containers—but only through weak points.

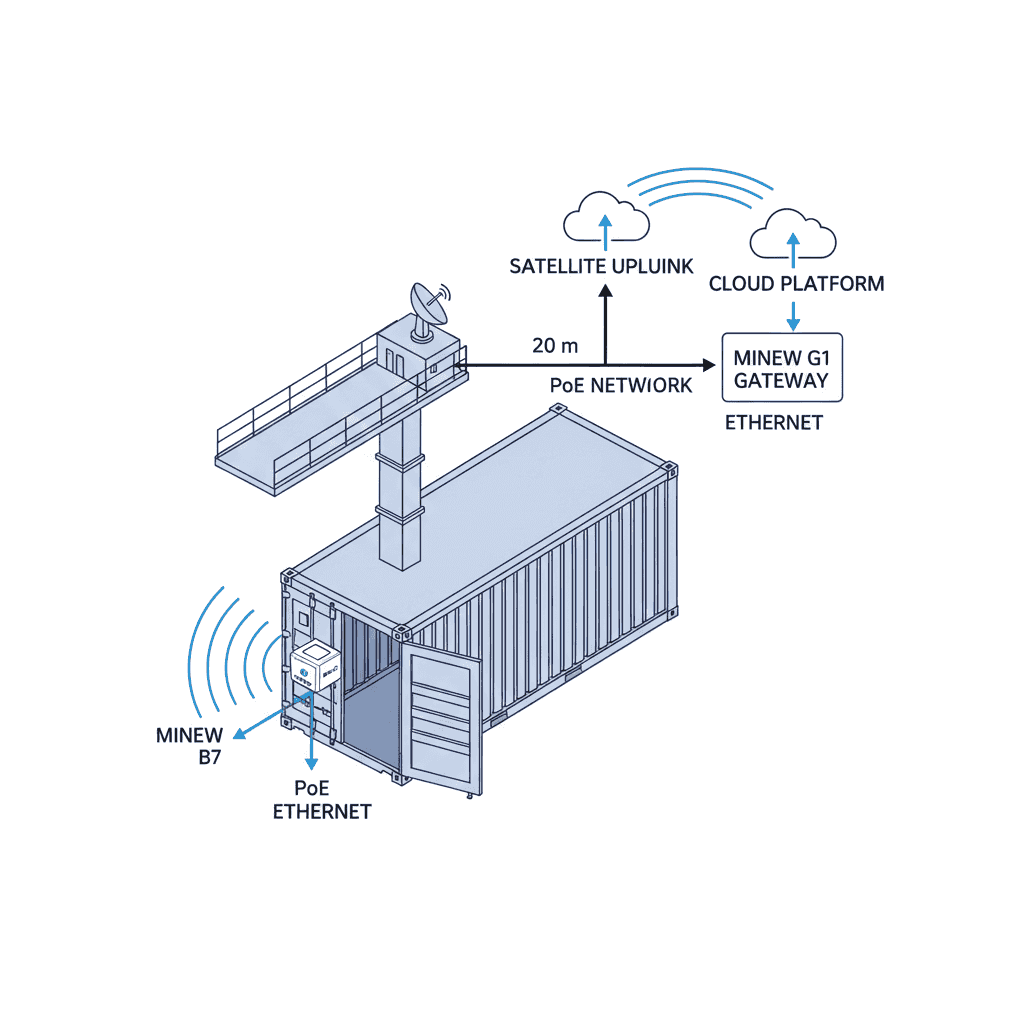

Sensor Placement Strategy (Critical Insight)

BLE Beacon Placement:

BLE sensors are installed inside the reefer container, as close as possible to:

• Door gaskets
• Air exchange vents

These are the only areas where 2.4 GHz BLE signals can "leak" through the container structure.

This is a practical, field-tested reality—not a theoretical assumption.

Gateway Infrastructure on the Vessel

To capture weak BLE signals:

• Minew G1 BLE Gateways are installed:
  • Along ship catwalks
  • In waterproof IP67 enclosures
• Distance constraint:
  • Gateways must be within ~10 meters of the container doors

This dense gateway layout ensures:

• Reliable beacon detection
• Minimal packet loss
• Consistent temperature reporting

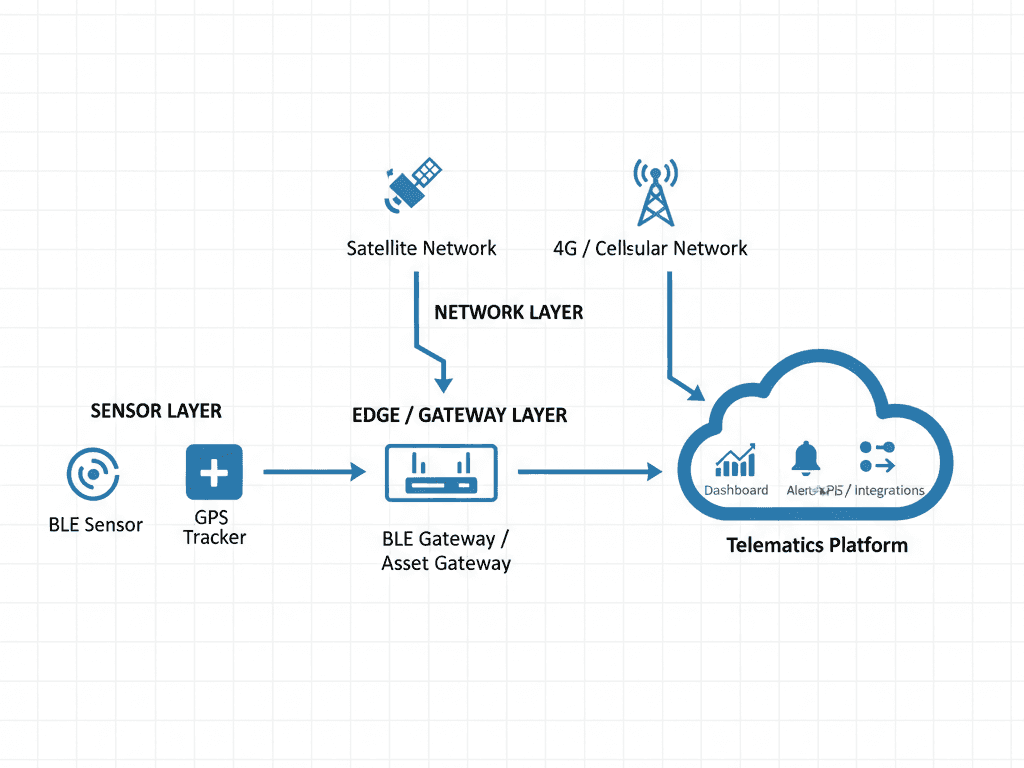

Sea Phase Data Flow

What Data Is Captured at Sea

• Internal container temperature (critical for reefers)
• Timestamped environmental readings
• Container presence confirmation

Even without GPS, the condition visibility is preserved.

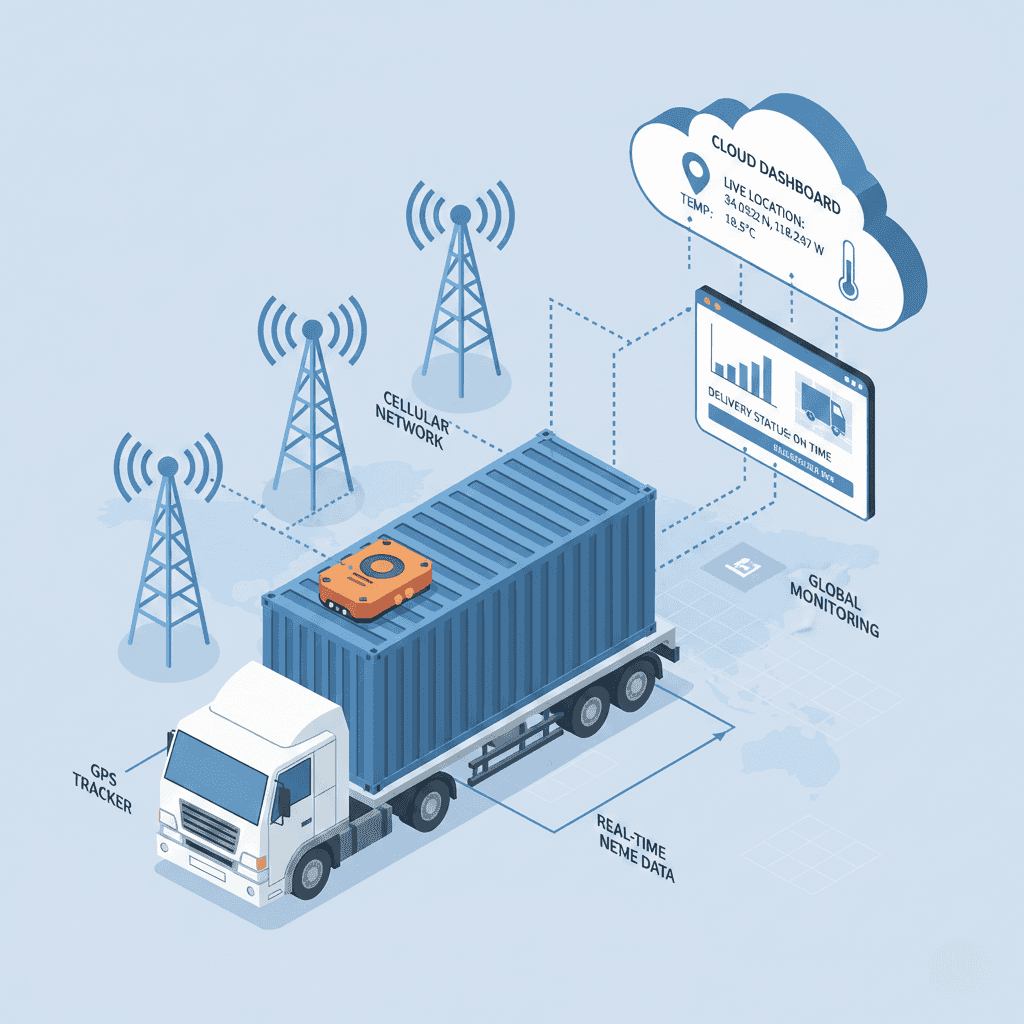

Land Phase Monitoring: GPS + Cellular Asset Tracking

Once the container leaves the vessel:

• Cellular networks become available
• GPS tracking becomes reliable
• Port-to-inland movement begins

This is where GPS asset trackers take over.

Device Placement on Land

GPS Asset Tracker:

• JimiLabs LL302
• Mounted on the exterior of the container

This provides:

• Real-time GPS location
• Movement detection
• Cellular data transmission via 4G

Two Configuration Options on Land

Option 1: LL302 as BLE Gateway

• Internal BLE sensors continue sending temperature data
• LL302 forwards BLE + GPS data over cellular

Option 2: LL302 Internal Sensors

• LL302 reports temperature directly
• Acts as a redundant validation source

This redundancy is crucial for:

• Claims validation
• Compliance audits
• Dispute resolution

Land Phase Data Flow

The moment the container exits the ship's hold, full location + condition visibility resumes automatically.

Cost-Optimised Installation Variant

To reduce installation complexity and cost:

The GPS tracker and BLE sensor can be mounted together near the door gasket.

Benefits

• Fewer installation points
• Faster deployment
• Reduced labour cost
• Acceptable signal performance for most use cases

This approach balances engineering purity with operational practicality.

Hardware Stack Summary

Tracking & Sensing Hardware

This hardware combination is:

• Proven
• Scalable
• Vendor-agnostic at the platform level

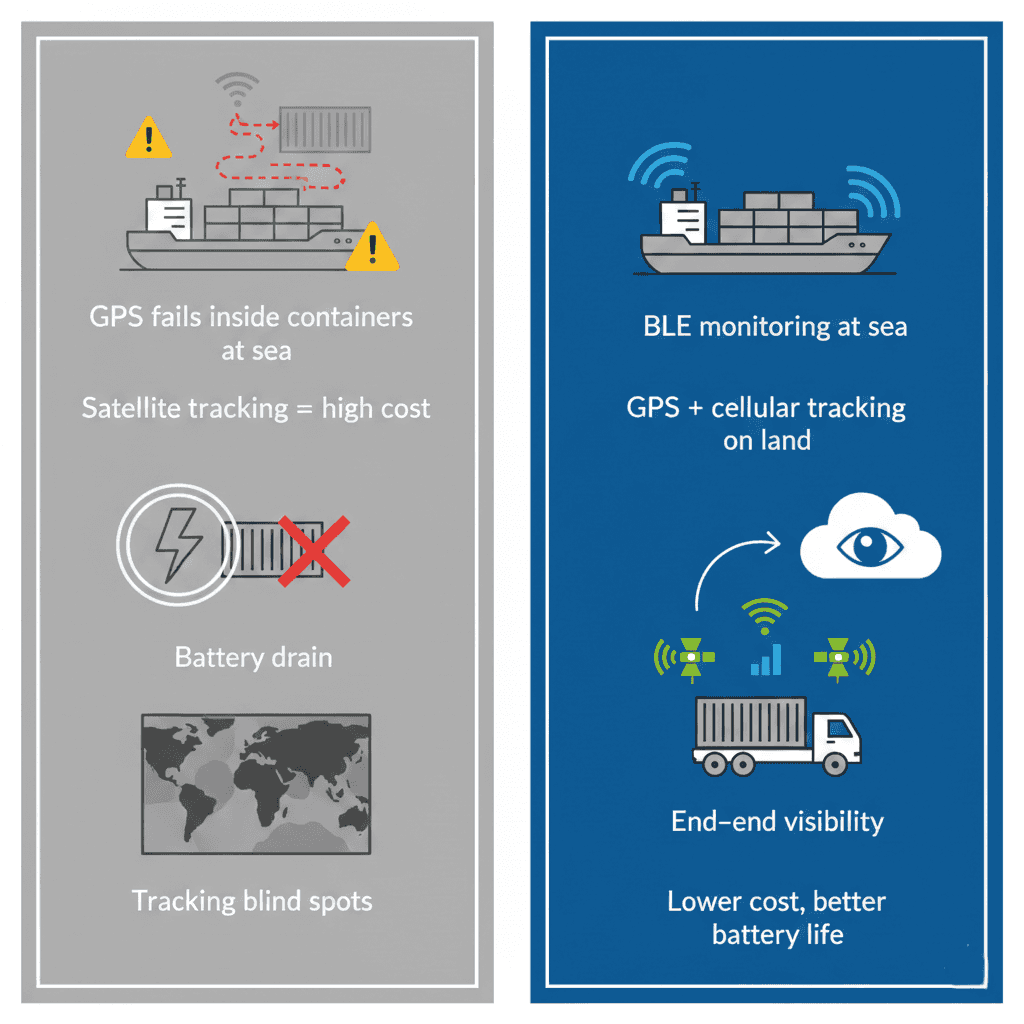

Why This Hybrid Approach Works (Better Than Alternatives)

Compared to Satellite-Only Trackers

• Lower cost
• Better battery life
• Higher data frequency

Compared to Manual Reefer Logs

• Real-time alerts
• Remote access
• Auditable data

Compared to Port-Only Monitoring

• Covers the entire journey
• Eliminates blind spots

How Yatis Telematics Fits into This Architecture

Platforms like Yatis Telematics act as the data convergence and intelligence layer:

• Unified API ingestion (BLE, GPS, satellite)
• Container-level dashboards
• Temperature excursion alerts
• Historical voyage analytics
• Integration with TMS / ERP systems

The value is not just tracking—it is decision-grade visibility.

Use Cases That Benefit Most

• Reefer container shipping
• Pharma and vaccine logistics
• Perishable food exports
• High-value electronics
• Insurance-backed cargo

Anywhere condition + custody matter, this approach delivers measurable ROI.

FAQs: End-to-End Container Tracking

Final Expert Take

There is no single technology that works perfectly across land and sea.

The hybrid maritime monitoring approach accepts this reality and designs around it—using:

• BLE where GPS fails
• GPS where cellular works
• Satellite only as a transport layer

For logistics operators, this means:

• Fewer blind spots
• Stronger cargo protection
• Defensible data for disputes
• Better customer trust
