Early Signs of EV Battery Failure in Fleets (and the Alerts That Matter)
Answer Box Summary
Early warnings include abnormal temperature rise, cell/pack temperature deltas, rapid State-of-Charge (SoC) drops, persistent cell imbalance, and off-gas/thermal cues. Configure layered alerts: detection → confirmation → action (slowdown, pull-over, isolate pack, escalate). Prioritize severity by thermal risk and route criticality.
Thermal events escalate fast. The window between detecting an "off-normal" condition and self-heating/thermal runaway can be short; design alerts to buy time for intervention.
Why Early Detection Matters
⚡ Thermal Events Escalate Fast
The window between detecting an "off-normal" condition and self-heating/thermal runaway can be short; design alerts to buy time for intervention.
🛡️ Safety Standards Expect Containment
UNECE R100 and related programs (UL 2580, SAE test methods) focus on preventing/containing thermal events at pack level. Fleet policies should mirror that intent.
🔍 Real-World Cues Exist
First-responder guides flag precursors like popping sounds, white vapor/smoke, and hot zones—use telematics + operator procedures to act earlier than visible symptoms.
The Five Big Early-Warning Signals
What to measure & why
What it is: Pack or cell temperature increasing faster than expected for load/ambient.
Why it matters: Internal faults and shorts present as localized heating before runaway. Research and safety briefs emphasize thermal monitoring as the primary early-warning channel.
What it is: A widening spread between the hottest and coolest cells/modules at similar load.
Why it matters: Poor thermal uniformity or a failing cell often shows up as a rising delta. Standards and industry testing frameworks evaluate thermal behavior and containment.
What it is: Faster-than-model decline in SoC not explained by power draw, route grade, or HVAC.
Why it matters: Can indicate rising internal resistance, micro-shorts, or sensor/estimation faults needing inspection. Fleet analytics should combine SoC vs. current vs. speed vs. ambient.
What it is: Repeated deviation in cell voltages that BMS balancing can't correct over several cycles.
Why it matters: Aged/damaged cells drift; chronic imbalance increases local stress and thermal risk.
What it is: Audible popping, white vapor/smoke, unusual odor; hotspot evident with thermal camera.
Why it matters: First-responder literature treats these as imminent danger signs—build driver/dispatcher SOPs to respond immediately.
Note: Exact alert thresholds are BMS/OEM-specific. The guidance below is operational and should be tuned with your OEM and safety team.

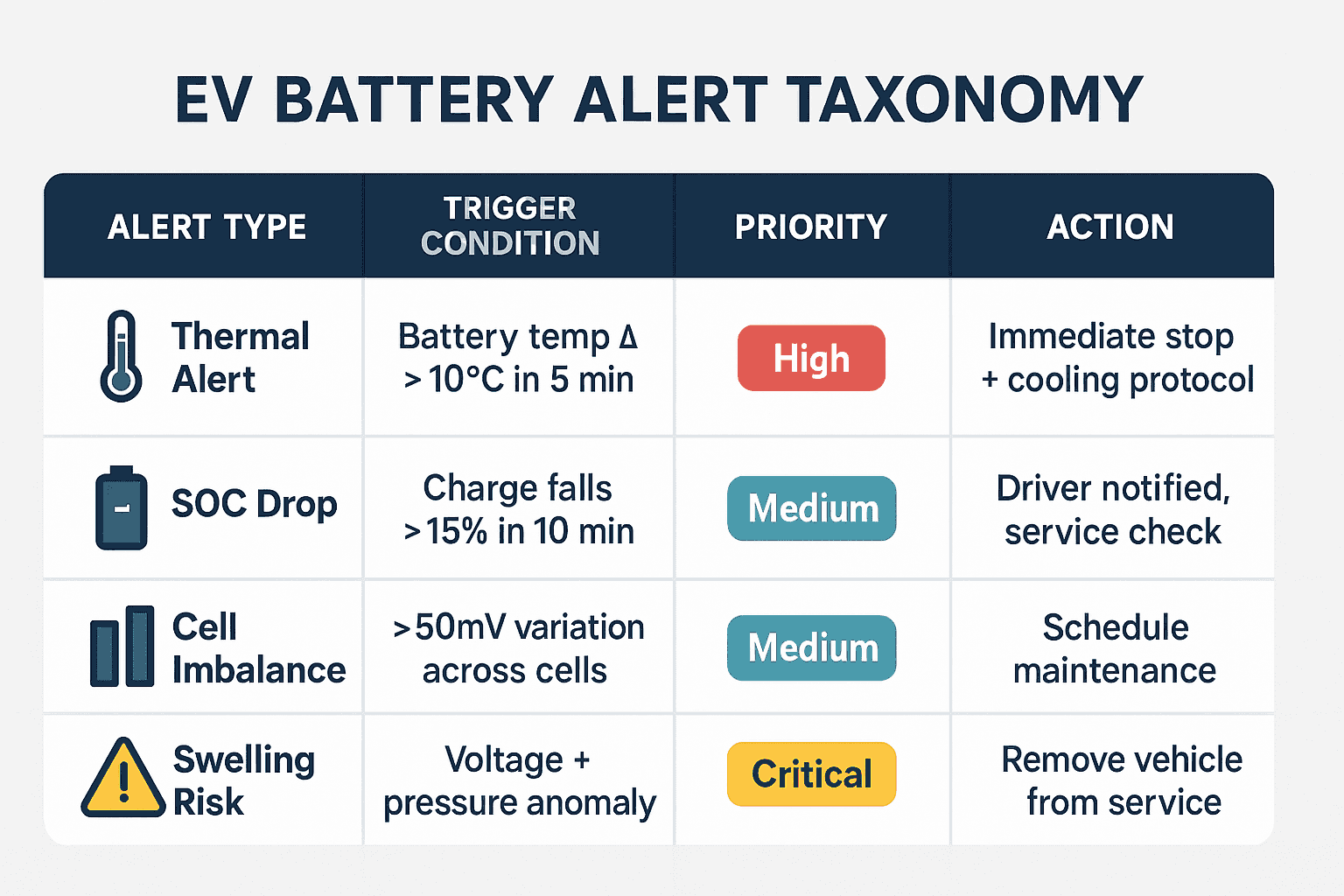

EV Battery Alert Taxonomy
A comprehensive monitoring system should categorize alerts based on severity and required response time. Our recommended alert taxonomy provides a structured approach to battery health monitoring:
Alert Categories Explained:
High Priority - Thermal Alert
Trigger: Battery temperature exceeds 50°C for more than 5 minutes
Action: Immediate stop and cooling protocol activation
Thermal events are the most critical as they can lead to thermal runaway and fire hazards.
Medium Priority - SOC Drop Alert
Trigger: State of charge falls more than 15% in 10 minutes
Action: Driver notification and service check scheduling
Rapid SOC drops indicate potential cell degradation or electrical system issues.
Medium Priority - Cell Imbalance Alert
Trigger: More than 50mV variation across battery cells
Action: Schedule maintenance for battery balancing
Cell imbalances reduce overall battery performance and lifespan.
Critical Priority - Swelling Risk Alert
Trigger: Voltage and pressure anomalies detected
Action: Remove vehicle from service immediately
Battery swelling indicates serious internal damage and safety risks.
Layered Alert Design (Detection → Confirmation → Action)
Sources emphasize time-to-intervention as a key metric; design your platform to minimize alert-to-acknowledgment.
| Layer | Trigger Examples | Telemetry Checks | Default Action (Operational) |
|---|---|---|---|
| 1. Detection | Temp rate-of-rise above model; module ΔT widening; sudden SoC drop | Cross-check load, speed, ambient | Flag event; start enhanced sampling; notify driver (non-intrusive) |
| 2. Confirmation | Persistent ΔT; repeated imbalance after balancing; SoC anomaly persists over N minutes | Compare to last known good profile; check charge/discharge symmetry | Manager alert; reduce power/regen; instruct driver to prepare safe pull-over |
| 3. Action | Temperature exceeds safe band or rising faster than limit; external cues present | Confirm with thermal camera if available; GPS safe-stop proximity | Immediate pull-over at safe location; pack isolate per OEM; dispatch support; begin incident log |
| 4. Escalation | Off-gas/visible vapor, popping sounds, smoke | N/A | Evacuate area; call emergency services; follow NFPA/EMS guidance |
Practical Alert Taxonomy (for your telematics/BMS rules)
Thermal Alerts
PACK_TEMP_ROC_HIGHMODULE_DT_HIGHCELL_TEMP_OVER_LIMIT
Electrical Alerts
CELL_V_UNDER/OVERIMBALANCE_PERSISTENTIR_INCREASE_ABNORMAL
Energy/SOC Alerts
SOC_DROP_UNEXPLAINEDCOULOMBIC_EFFICIENCY_ANOMALY
Environment/System Alerts
COOLING_FAILURESENSOR_DRIFTENCLOSURE_TEMP_HIGH
Field Cues
OFF_GAS_SUSPECTEDSMOKE_DETECTED(vision sensor)ODOR_REPORTED(operator flag)
Back these with time windows, hysteresis, and debounce to avoid alert fatigue.

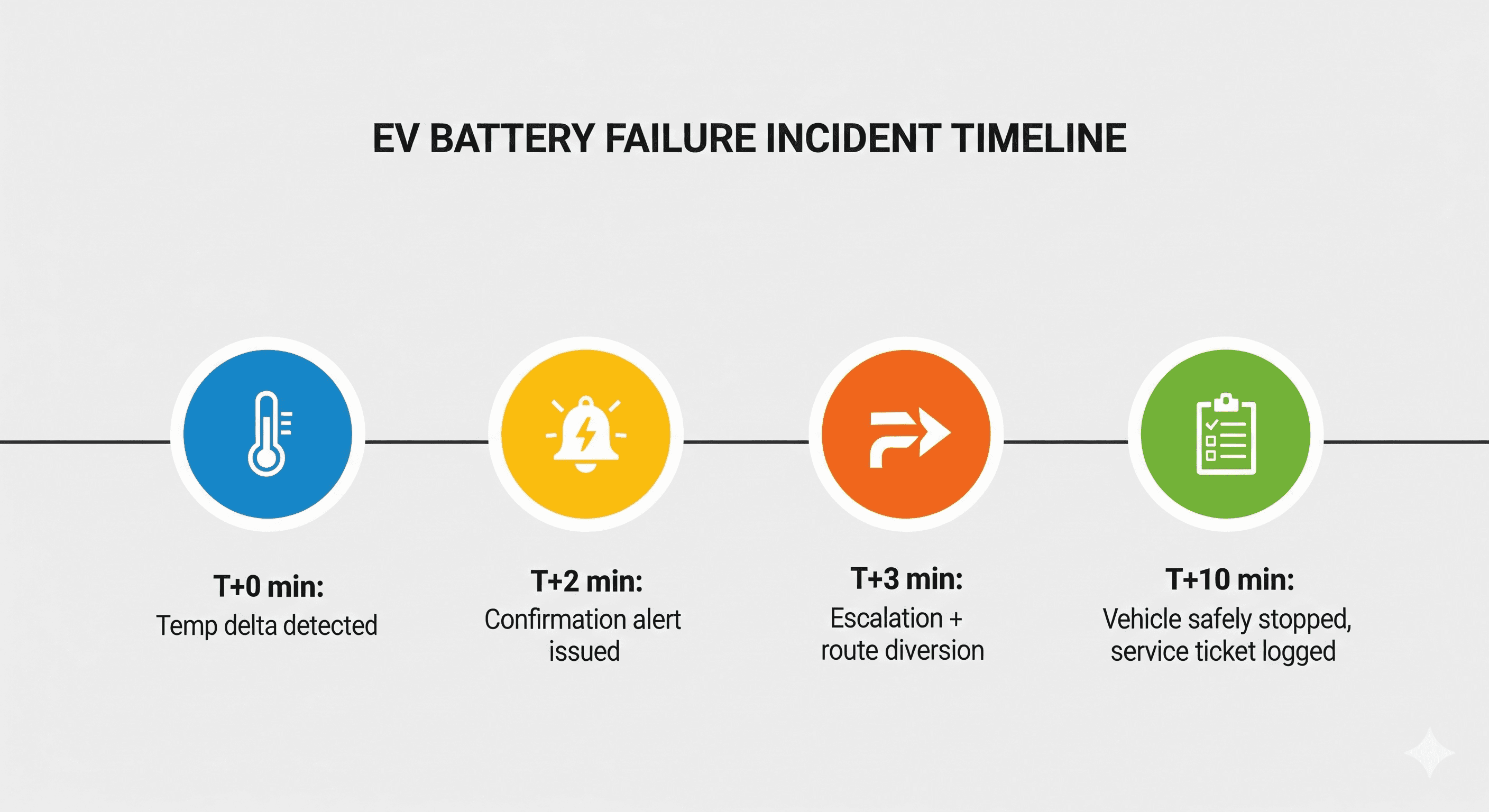

Incident Response Timeline
When battery anomalies are detected, having a clear incident response timeline is crucial for fleet safety and operational continuity:
Timeline Breakdown:
T+0 min
Detection
Temperature delta detected by onboard sensors. Automatic logging begins.
T+2 min
Confirmation
Alert issued to fleet management system and driver notification.
T+3 min
Escalation
Route diversion and emergency protocols activated if required.
T+10 min
Resolution
Vehicle safely stopped, service ticket logged, and incident documented.
KPIs to Track (Operations, not regulatory)
Alert-to-intervention time
(seconds)
False-positive rate
(per 1,000 hours)
Events by ambient band
(≤10°C, 10–30°C, ≥30°C)
Reoccurrence after coaching/fix
(30/90 days)
Thermal uniformity index
(e.g., 95th-5th percentile cell/module temp spread)
These KPIs map to the "time between detection and self-heating/thermal runaway" focus in safety research.
Field SOP (Driver + Dispatcher)
Standard Operating Procedures
- On early-warning alert: reduce load; disable fast charging; increase cabin ventilation (per OEM).
- If second-layer confirmation: plan a safe pull-over; keep clear of flammables; notify control room.
- If external cues (vapor/smoke/popping): evacuate, isolate the area, call responders, follow ERG. Do not open the pack enclosure.
What the Science & Standards Say
- NHTSA and SAE meetings highlight defining diagnostic parameters for early detection and the limited but crucial time window to intervene pre-runaway.
- UNECE R100 (Rev.2/Amend.5) sets REESS safety performance requirements used widely by regulators; pack-level containment is the target.
- Peer-reviewed studies show thermal, electrical, and gas-evolution signals precede runaway; combining electro-thermal models with sensing improves early detection robustness.
- NHTSA technical report covers Li-ion safety issues and architectures; helpful background for training materials.
FAQ (Schema-friendly)
Implementation Best Practices
1. Real-Time Monitoring Setup
- Install comprehensive battery management systems (BMS) with cellular connectivity
- Configure temperature, voltage, and current monitoring at cell level
- Set up automated data transmission to fleet management platforms
- Establish redundant communication channels for critical alerts
2. Alert Configuration
- Customize thresholds based on vehicle type, usage patterns, and environmental conditions
- Implement escalation matrices for different alert types
- Configure multiple notification channels (SMS, email, push notifications)
- Set up automated workflows for common scenarios
3. Driver Training
- Educate drivers on battery warning signs and dashboard indicators
- Provide clear procedures for different alert scenarios
- Train on safe vehicle shutdown and evacuation procedures
- Regular refresher training and scenario simulations
4. Maintenance Integration
- Link alert systems with preventive maintenance scheduling
- Maintain historical battery health data for trend analysis
- Coordinate with certified EV service providers
- Implement battery lifecycle management strategies
Technology Solutions
Modern fleet management platforms offer sophisticated battery monitoring capabilities:
Telematics Integration
- Real-time battery data streaming
- Predictive analytics and machine learning
- Integration with existing fleet management systems
- Mobile apps for drivers and fleet managers
Advanced Analytics
- Battery degradation trend analysis
- Predictive failure modeling
- Cost optimization recommendations
- Performance benchmarking across fleet
ROI and Business Benefits
Implementing comprehensive EV battery monitoring delivers measurable returns:
30-50%
Reduction in unexpected battery failures
15-25%
Extension of battery lifespan through optimization
40-60%
Reduction in emergency service calls
