How Does a Tyre Pressure Monitoring System Work? (Complete Guide for 2026)

TL;DR

A tyre pressure monitoring system (TPMS) works by continuously monitoring the air pressure inside a vehicle's tyres using sensors. These sensors send data to the vehicle's control unit, which alerts the driver if tyre pressure drops below a safe level. TPMS helps improve safety, fuel efficiency, and tyre lifespan.

Why Tyre Pressure Monitoring Matters Today

Under-inflated tyres are one of the most common and ignored safety risks on the road.

Incorrect tyre pressure can lead to:

• Reduced braking efficiency
• Poor vehicle handling
• Increased fuel consumption
• Faster tyre wear
• Higher risk of blowouts

This is why modern vehicles increasingly rely on a tyre pressure monitoring system rather than manual checks alone.

What Is a Tyre Pressure Monitoring System (TPMS)?

A tyre pressure monitoring system is an electronic system designed to monitor air pressure in vehicle tyres and warn the driver when pressure falls outside the recommended range.

TPMS does not inflate tyres.
Its role is detection, monitoring, and alerting.

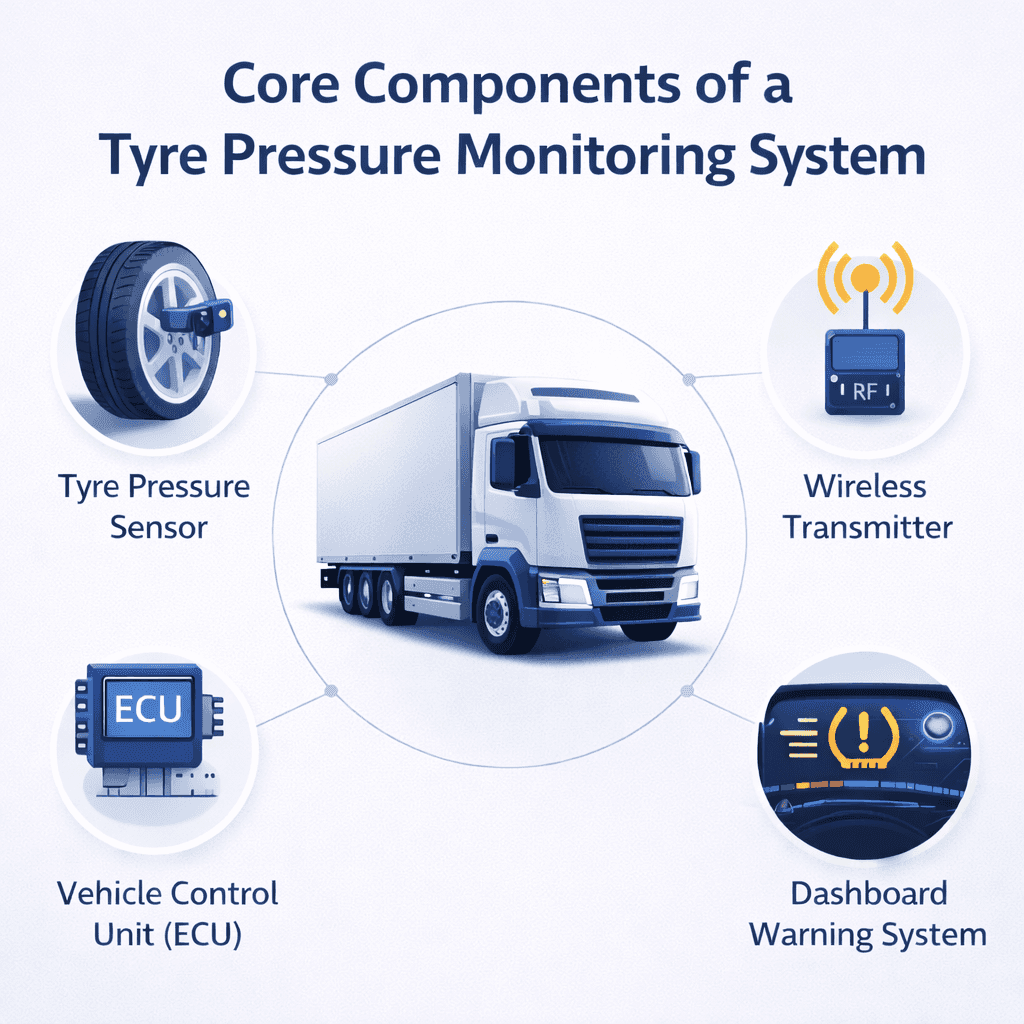

Core Components of a TPMS

1. Tyre Pressure Sensors

Installed either:

• Inside the tyre (direct TPMS), or
• Indirectly measured using wheel speed data (indirect TPMS)

2. Control Unit (ECU)

Receives pressure data and compares it with predefined thresholds.

3. Driver Alert Interface

Usually a warning light or message on the dashboard.

How Does a Tyre Pressure Monitoring System Work? (Step-by-Step)

Step 1: Pressure Measurement

Each tyre's pressure is measured either directly by a sensor or indirectly via wheel rotation data.

Step 2: Data Transmission

The sensor sends pressure data wirelessly (usually RF) to the vehicle's control unit.

Step 3: Data Analysis

The system checks whether the pressure is within safe limits set by the manufacturer.

Step 4: Driver Alert

If pressure drops below the threshold, the TPMS warning light turns on.

This process runs continuously while driving.

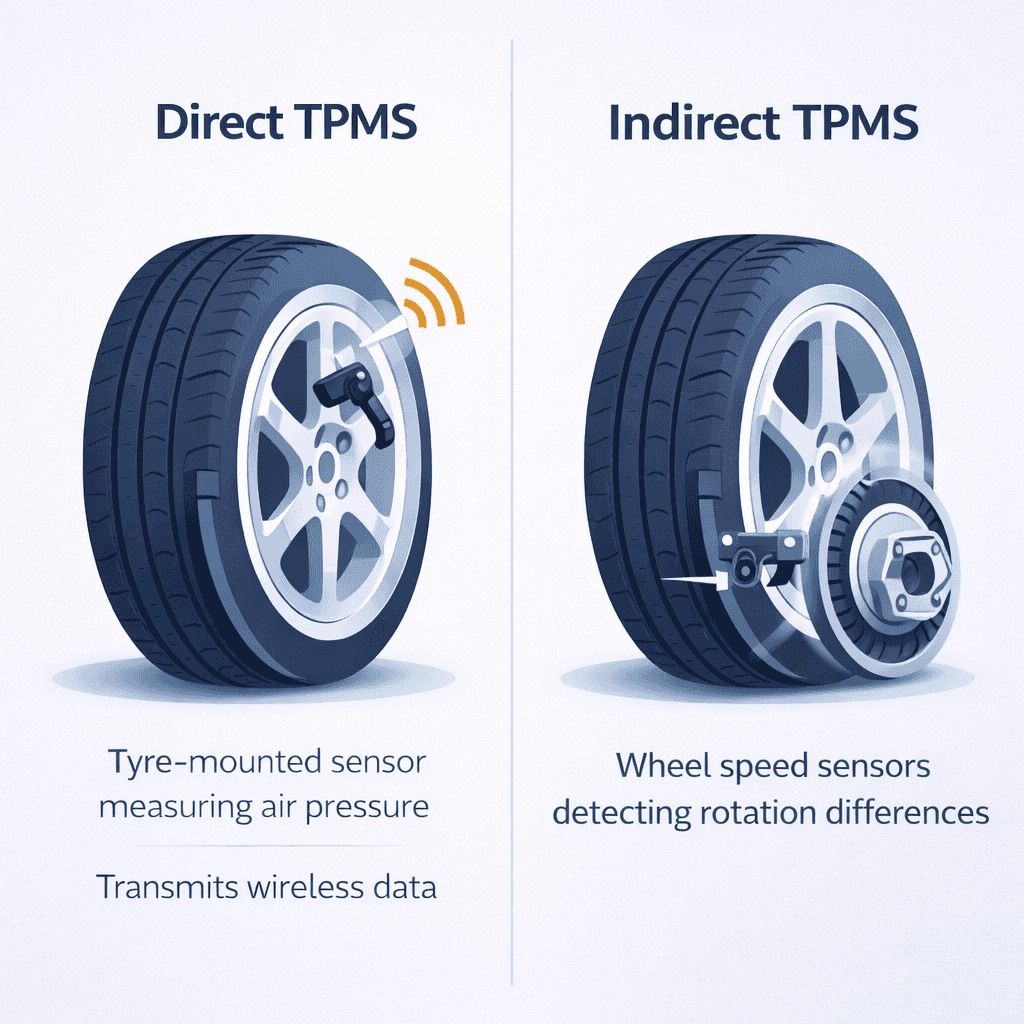

Types of Tyre Pressure Monitoring Systems

1. Direct TPMS

Direct TPMS uses physical pressure sensors mounted inside each tyre.

How it works:

• Sensor directly measures air pressure and temperature
• Sends real-time data to ECU

Pros:

• Highly accurate
• Real-time pressure readings
• Individual tyre monitoring

Cons:

• Higher cost
• Sensor battery replacement needed

2. Indirect TPMS

Indirect TPMS uses ABS wheel speed sensors instead of pressure sensors.

How it works:

• Under-inflated tyres rotate faster
• System detects abnormal rotation patterns

Pros:

• Lower cost
• No battery-powered sensors

Cons:

• Less accurate
• Cannot show exact pressure values

What Triggers the TPMS Warning Light?

The TPMS warning light usually turns on when:

• Tyre pressure drops 20-25% below recommended level
• Sudden pressure loss occurs
• TPMS sensor malfunctions

Note: The warning does not always mean a puncture — it can also indicate gradual air loss.

Can You Drive with the TPMS Light On?

Short answer: You shouldn't ignore it.

Driving with low tyre pressure can:

• Increase stopping distance
• Damage tyres permanently
• Reduce fuel efficiency

TPMS is an early warning system, not a suggestion.

How TPMS Improves Safety and Efficiency

A properly functioning TPMS helps:

• Prevent tyre blowouts
• Maintain optimal braking performance
• Improve fuel economy
• Extend tyre life
• Reduce vehicle maintenance costs

For fleets, TPMS also supports predictive maintenance.

TPMS in India: Is It Mandatory?

In India:

• TPMS is increasingly included in new vehicles
• Adoption is driven by safety awareness and fleet compliance
• Especially relevant for commercial vehicles and fleets

Frequently Asked Questions

Final Thoughts

A tyre pressure monitoring system is a silent safety companion — constantly working in the background to protect your vehicle, tyres, and passengers.

Understanding how TPMS works helps drivers and fleet operators respond early, avoid damage, and drive safer.

For fleets and commercial vehicles, TPMS becomes even more valuable when integrated with vehicle monitoring and analytics platforms.

Smart tyre data is not just about safety — it's about preventing downtime before it happens.
